我想知道是否有用于喷气背包组合的暴露下拉菜单的解决方案？我无法为喷气背包组成中的此组件找到合适的解决方案。有什么帮助吗？
1.1.0-alpha06 版本引入了基于 ExposedDropdownMenuBox 的 ExposedDropdownMenu 的实现，其中包含 TextField 和 DropdownMenu。
像这样：
val options = listOf("Option 1", "Option 2", "Option 3", "Option 4", "Option 5")
var expanded by remember { mutableStateOf(false) }
var selectedOptionText by remember { mutableStateOf(options[0]) }
ExposedDropdownMenuBox(
expanded = expanded,
onExpandedChange = {
expanded = !expanded
}
) {
TextField(
readOnly = true,
value = selectedOptionText,
onValueChange = { },
label = { Text("Label") },
trailingIcon = {
ExposedDropdownMenuDefaults.TrailingIcon(
expanded = expanded
)
},
colors = ExposedDropdownMenuDefaults.textFieldColors()
)
ExposedDropdownMenu(
expanded = expanded,
onDismissRequest = {
expanded = false
}
) {
options.forEach { selectionOption ->
DropdownMenuItem(
onClick = {
selectedOptionText = selectionOption
expanded = false
}
) {
Text(text = selectionOption)
}
}
}
}
如果您使用的是 M3 （androidx.compose.material3），您还必须将 menuAnchor 修饰符传递给 TextField：
ExposedDropdownMenuBox(
expanded = expanded,
onExpandedChange = { expanded = !expanded },
) {
TextField(
//...
modifier = Modifier.menuAnchor()
)
ExposedDropdownMenu(){ /*.. */ }
}
在版本 1.0.x 中，没有内置组件。
您可以使用大纲文本字段下拉菜单。

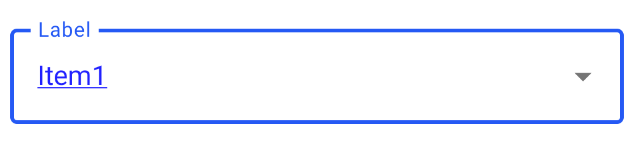

它只是一个基本的（非常基本的）实现：
var expanded by remember { mutableStateOf(false) }
val suggestions = listOf("Item1","Item2","Item3")
var selectedText by remember { mutableStateOf("") }
var textfieldSize by remember { mutableStateOf(Size.Zero)}
val icon = if (expanded)
Icons.Filled.ArrowDropUp //it requires androidx.compose.material:material-icons-extended
else
Icons.Filled.ArrowDropDown
Column() {
OutlinedTextField(
value = selectedText,
onValueChange = { selectedText = it },
modifier = Modifier
.fillMaxWidth()
.onGloballyPositioned { coordinates ->
//This value is used to assign to the DropDown the same width
textfieldSize = coordinates.size.toSize()
},
label = {Text("Label")},
trailingIcon = {
Icon(icon,"contentDescription",
Modifier.clickable { expanded = !expanded })
}
)
DropdownMenu(
expanded = expanded,
onDismissRequest = { expanded = false },
modifier = Modifier
.width(with(LocalDensity.current){textfieldSize.width.toDp()})
) {
suggestions.forEach { label ->
DropdownMenuItem(onClick = {
selectedText = label
}) {
Text(text = label)
}
}
}
}
这就是我所做的，以使宽度与文本字段相同：复制和修改加布里埃尔的答案。
var expanded by remember { mutableStateOf(false) }
val suggestions = listOf("Item1","Item2","Item3")
var selectedText by remember { mutableStateOf("") }
var dropDownWidth by remember { mutableStateOf(0) }
val icon = if (expanded)
Icons.Filled.....
else
Icons.Filled.ArrowDropDown
Column() {
OutlinedTextField(
value = selectedText,
onValueChange = { selectedText = it },
modifier = Modifier.fillMaxWidth()
.onSizeChanged {
dropDownWidth = it.width
},
label = {Text("Label")},
trailingIcon = {
Icon(icon,"contentDescription", Modifier.clickable { expanded = !expanded })
}
)
DropdownMenu(
expanded = expanded,
onDismissRequest = { expanded = false },
modifier = Modifier
.width(with(LocalDensity.current){dropDownWidth.toDp()})
) {
suggestions.forEach { label ->
DropdownMenuItem(onClick = {
selectedText = label
}) {
Text(text = label)
}
}
}
}
这是我的版本。我在不使用文本字段（所以没有键盘）的情况下实现了这一目标。有一个“常规”和一个“大纲”版本。
import androidx.compose.animation.core.animateFloatAsState
import androidx.compose.foundation.background
import androidx.compose.foundation.border
import androidx.compose.foundation.clickable
import androidx.compose.foundation.layout.*
import androidx.compose.foundation.shape.ZeroCornerSize
import androidx.compose.material.*
import androidx.compose.material.icons.Icons
import androidx.compose.material.icons.filled.ExpandMore
import androidx.compose.runtime.*
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.draw.clip
import androidx.compose.ui.draw.drawBehind
import androidx.compose.ui.draw.rotate
import androidx.compose.ui.geometry.Offset
import androidx.compose.ui.geometry.Size
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.graphics.Shape
import androidx.compose.ui.layout.onGloballyPositioned
import androidx.compose.ui.platform.LocalDensity
import androidx.compose.ui.platform.LocalFocusManager
import androidx.compose.ui.unit.Dp
import androidx.compose.ui.unit.dp
import androidx.compose.ui.unit.toSize
import kotlinx.coroutines.delay
import kotlinx.coroutines.launch
// ExposedDropDownMenu will be added in Jetpack Compose 1.1.0.
// This is a reimplementation while waiting.
// See https://stackoverflow.com/questions/67111020/exposed-drop-down-menu-for-jetpack-compose/6904285
@Composable
fun SimpleExposedDropDownMenu(
values: List<String>,
selectedIndex: Int,
onChange: (Int) -> Unit,
label: @Composable () -> Unit,
modifier: Modifier,
backgroundColor: Color = MaterialTheme.colors.onSurface.copy(alpha = TextFieldDefaults.BackgroundOpacity),
shape: Shape = MaterialTheme.shapes.small.copy(bottomEnd = ZeroCornerSize, bottomStart = ZeroCornerSize)
) {
SimpleExposedDropDownMenuImpl(
values = values,
selectedIndex = selectedIndex,
onChange = onChange,
label = label,
modifier = modifier,
backgroundColor = backgroundColor,
shape = shape,
decorator = { color, width, content ->
Box(
Modifier
.drawBehind {
val strokeWidth = width.value * density
val y = size.height - strokeWidth / 2
drawLine(
color,
Offset(0f, y),
Offset(size.width, y),
strokeWidth
)
}
) {
content()
}
}
)
}
@Composable
fun SimpleOutlinedExposedDropDownMenu(
values: List<String>,
selectedIndex: Int,
onChange: (Int) -> Unit,
label: @Composable () -> Unit,
modifier: Modifier,
backgroundColor: Color = MaterialTheme.colors.onSurface.copy(alpha = TextFieldDefaults.BackgroundOpacity),
shape: Shape = MaterialTheme.shapes.small
) {
SimpleExposedDropDownMenuImpl(
values = values,
selectedIndex = selectedIndex,
onChange = onChange,
label = label,
modifier = modifier,
backgroundColor = backgroundColor,
shape = shape,
decorator = { color, width, content ->
Box(
Modifier
.border(width, color, shape)
) {
content()
}
}
)
}
@Composable
private fun SimpleExposedDropDownMenuImpl(
values: List<String>,
selectedIndex: Int,
onChange: (Int) -> Unit,
label: @Composable () -> Unit,
modifier: Modifier,
backgroundColor: Color,
shape: Shape,
decorator: @Composable (Color, Dp, @Composable () -> Unit) -> Unit
) {
var expanded by remember { mutableStateOf(false) }
var textfieldSize by remember { mutableStateOf(Size.Zero) }
val indicatorColor =
if (expanded) MaterialTheme.colors.primary.copy(alpha = ContentAlpha.high)
else MaterialTheme.colors.onSurface.copy(alpha = TextFieldDefaults.UnfocusedIndicatorLineOpacity)
val indicatorWidth = (if (expanded) 2 else 1).dp
val labelColor =
if (expanded) MaterialTheme.colors.primary.copy(alpha = ContentAlpha.high)
else MaterialTheme.colors.onSurface.copy(ContentAlpha.medium)
val trailingIconColor = MaterialTheme.colors.onSurface.copy(alpha = TextFieldDefaults.IconOpacity)
val rotation: Float by animateFloatAsState(if (expanded) 180f else 0f)
val focusManager = LocalFocusManager.current
Column(modifier = modifier.width(IntrinsicSize.Min)) {
decorator(indicatorColor, indicatorWidth) {
Box(
Modifier
.fillMaxWidth()
.background(color = backgroundColor, shape = shape)
.onGloballyPositioned { textfieldSize = it.size.toSize() }
.clip(shape)
.clickable {
expanded = !expanded
focusManager.clearFocus()
}
.padding(start = 16.dp, end = 12.dp, top = 7.dp, bottom = 10.dp)
) {
Column(Modifier.padding(end = 32.dp)) {
ProvideTextStyle(value = MaterialTheme.typography.caption.copy(color = labelColor)) {
label()
}
Text(
text = values[selectedIndex],
modifier = Modifier.padding(top = 1.dp)
)
}
Icon(
imageVector = Icons.Filled.ExpandMore,
contentDescription = "Change",
tint = trailingIconColor,
modifier = Modifier
.align(Alignment.CenterEnd)
.padding(top = 4.dp)
.rotate(rotation)
)
}
}
DropdownMenu(
expanded = expanded,
onDismissRequest = { expanded = false },
modifier = Modifier
.width(with(LocalDensity.current) { textfieldSize.width.toDp() })
) {
values.forEachIndexed { i, v ->
val scope = rememberCoroutineScope()
DropdownMenuItem(
onClick = {
onChange(i)
scope.launch {
delay(150)
expanded = false
}
}
) {
Text(v)
}
}
}
}
}
